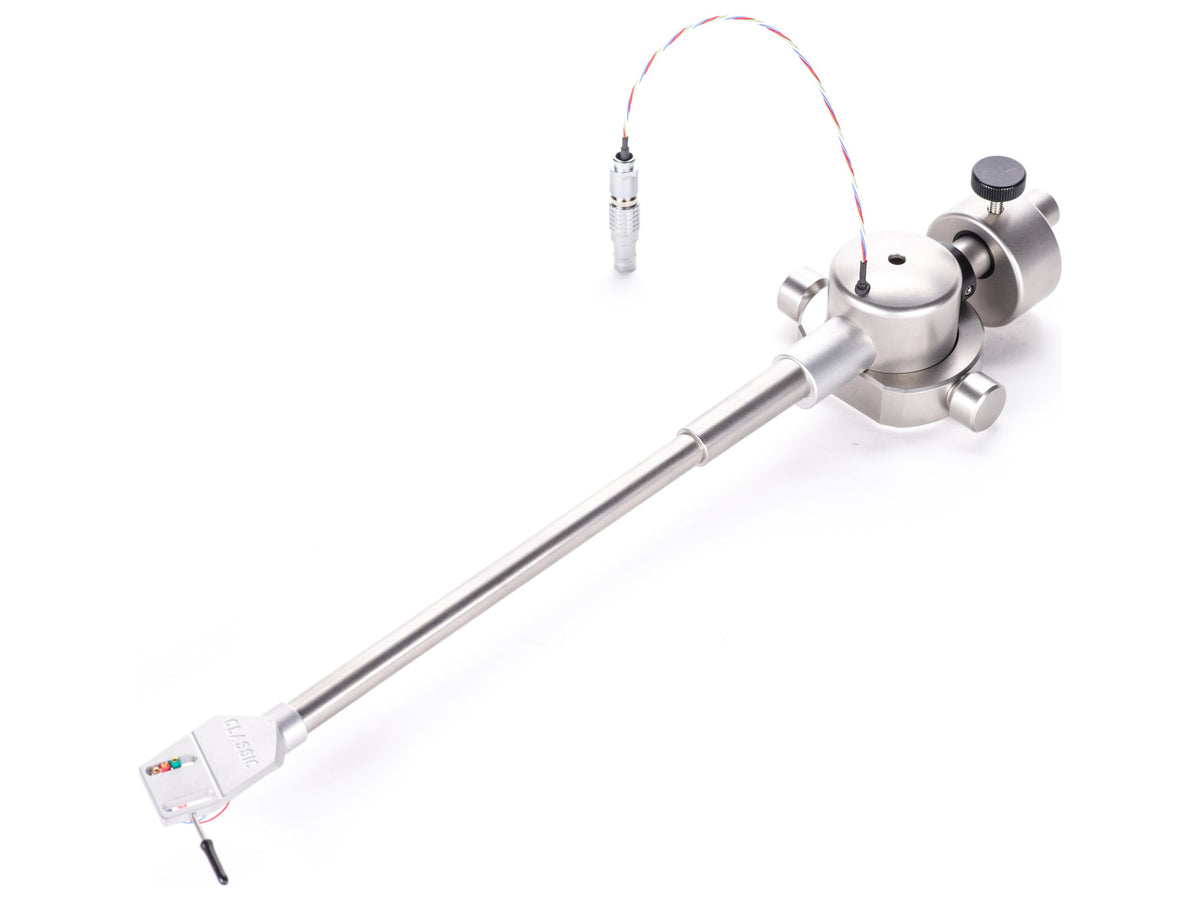

VPI JMW 10 is a straight 10-inch unipivot tonearm in aluminium and steel
JMW 10 is the 10-inch version of VPI's metal unipivot tonearm: straight wand, integrated metal headshell, aluminium and steel construction. It is sold as the wand alone and needs the JMW-VTA base to be fitted to a turntable.
Inside runs VPI copper weave wiring, terminated with a Limo connection. Set-up relies on the adjustable dropped counterweight, the azimuth ring and VTA adjustment.
- Bearing: unipivot
- Internal wiring: VPI copper weave
- Pivot-to-spindle distance: 258 mm
- Effective length: 273.42 mm
- Effective mass: 11 g
- Overhang: 15.42 mm
- Offset angle: 19.98 degrees
- Stated average RMS distortion: 0.311%
- Materials: aluminium and steel
