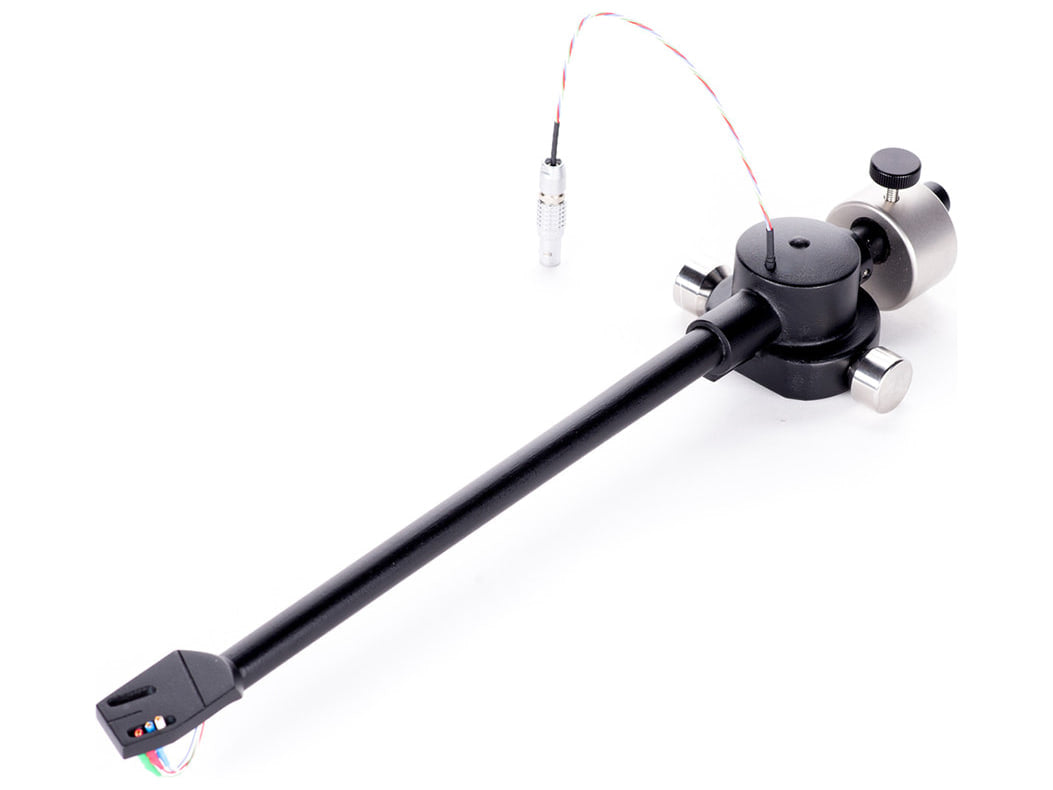

VPI JMW 10 3D braccio

VPI JMW 10 3D is a straight 10-inch unipivot tonearm with a 3D-printed wand

JMW 10 3D sits beside the metal JMW 10 with a wand made by 3D printing: a plastic and resin compound, stated to be ultralight and indestructible, with the headshell integrated. Each unit takes 24 hours to print and effective mass is 9 g. It is sold as the wand alone: fitting it requires the JMW-VTA base.

The bearing is a unipivot and the internal wiring is VPI copper weave, with a Limo connection. The dropped counterweight, azimuth through side weights and VTA can all be adjusted.

• Bearing: unipivot
• Internal wiring: VPI copper weave
• Pivot-to-spindle distance: 258 mm
• Effective length: 273.4 mm
• Effective mass: 9 g
• Overhang: 15.4 mm
• Offset angle: 19.98 degrees
• Stated average RMS distortion: 0.311%
• Materials: 3D technology with epoxy resin and Delrin, among others
