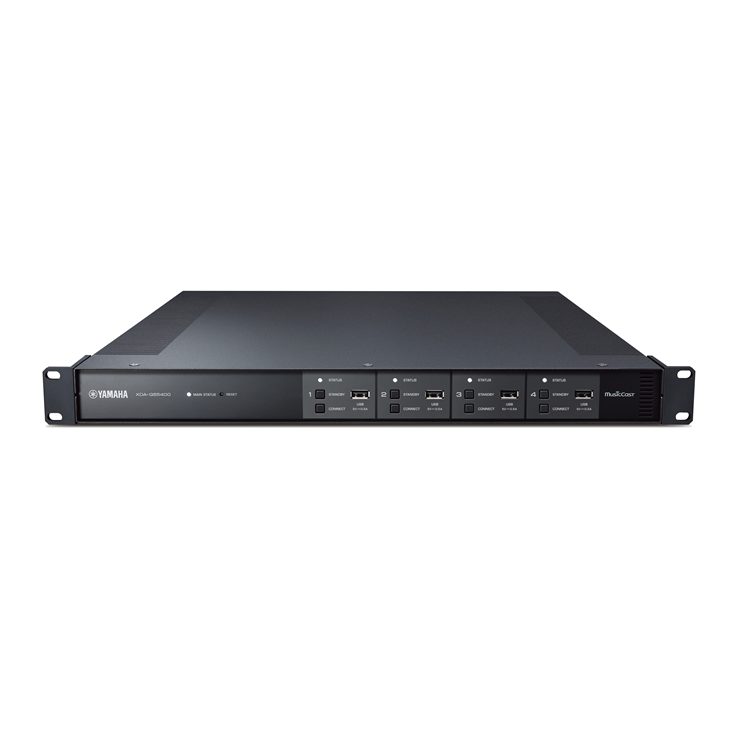

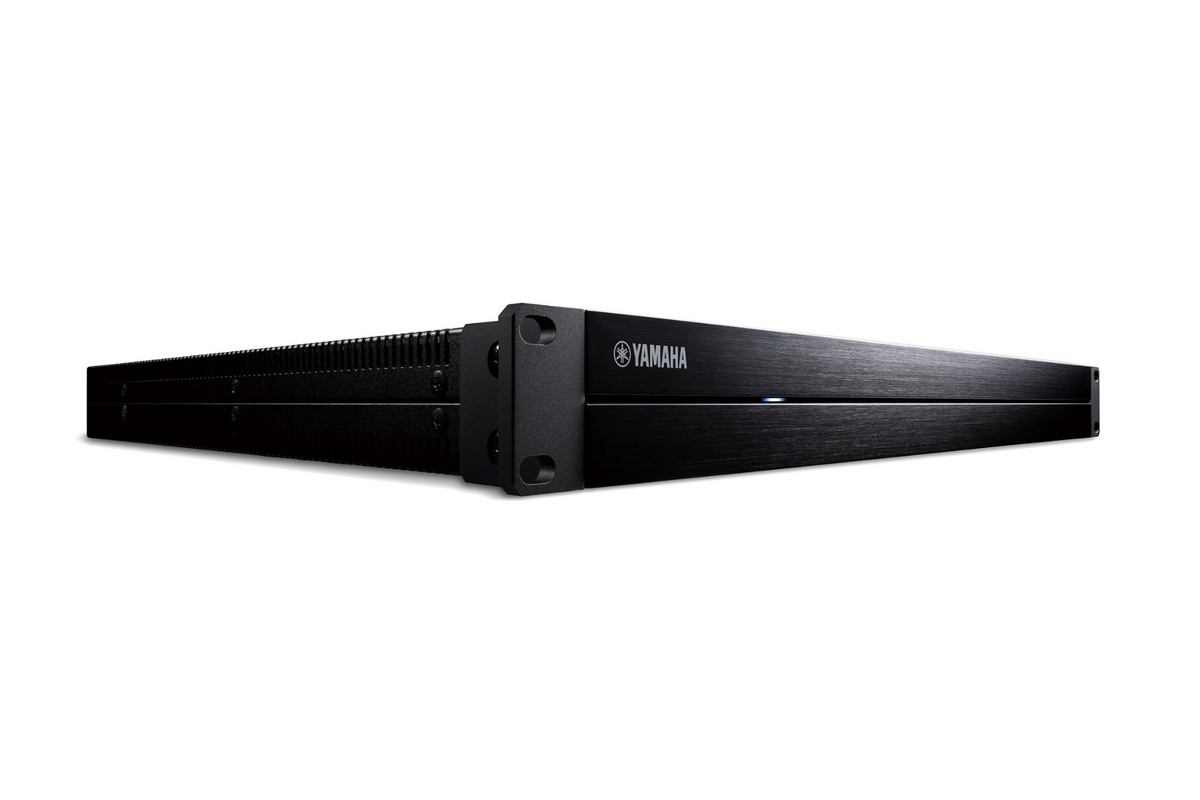

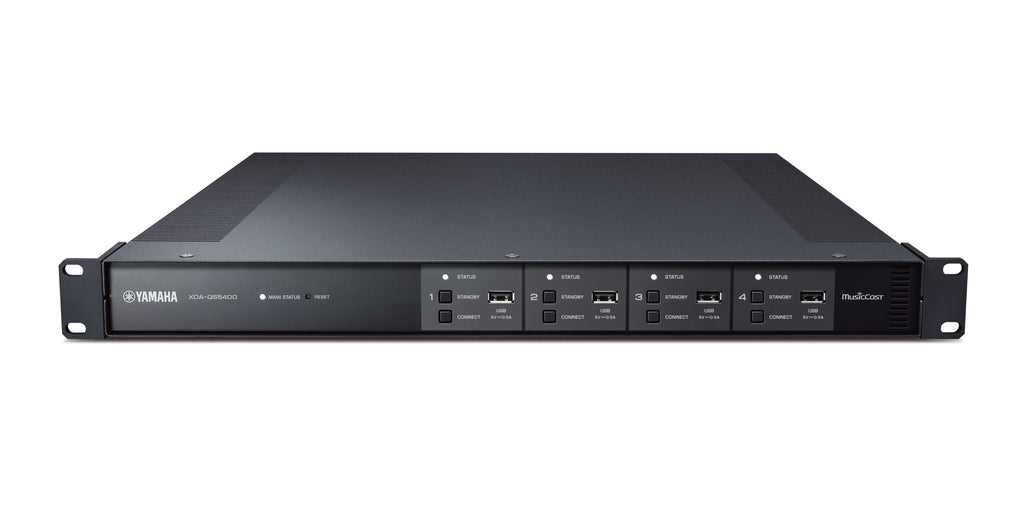

Description Yamaha XDA QS5400
Amplifier with MusicCast Multi-Room Streaming
Brilliant integration
Designed and engineered entirely for custom installation, the "QS" represents the ultimate integrated solution for spreading extraordinary sound in any room of the house.
Subtle but Powerful
The QS covers four-room audio streaming and eight audiophile-quality amplification channels, despite an incredibly slim design with 1U enclosure height, perfect for optimizing its installation inside the precious rack cabinet.Easy Expansion
Multiple QS units can be used to expand coverage up to 32 zones with simultaneous playback of synchronized groups of up to 20 zones per group. In addition, the QS features four zone pre-outs that allow it to be paired with the Yamaha XDA-AMP5400RK multi-room amplifier, for extra power or additional speaker connections for larger homes. The pre-outs can also be used to connect active subwoofers or subwoofer amplifiers.
A family like no other
As a member of the MusicCast family, the QS integrates seamlessly with Yamaha AV receivers, sound bars and other devices. Whether it's a home theater surround sound system, TV sound bar in the bedroom or built-in speakers in the kitchen, it will all work in perfect harmony.Wide-ranging streaming
You can access all your favorite music, including built-in streaming music services, music stored on smartphones, tablets, and network storage devices.*Availability of streaming services varies by region.Works with Everything
Want to hear TV sound or a vinyl record throughout the house? Simply sync to your MusicCast receiver, sound bar or turntable to access audio from any source.
Third party control
The QS supports IP control by third-party control systems used in most modern connected homes.
A dedicated (Incredible) App
The free MusicCast app makes it easy to set up and control everything, and comes with unique customization features including the ability to assign your own room pictures and rename, rearrange and hide sources.
Audiophile Quality Amplification
No traditional amplification, the QS employs ultra-efficient ICEpower ICs to deliver eight channels of pure, dynamic and musical 50 watts per channel (8 ohms) digital amplification with an extraordinary frequency response from 10 Hz up to 20 kHz (+0 /-3dB) and a signal to noise ratio of 106dB. Supports 4 ohms at 100 watts per channel and is bridgeable to deliver 200 watts per channel (8 ohms)
Goodbye to buzzing mass loops
The nightmare of the custom integrator: the hum of ground loops, a typical and worrying side effect due to the connection of a large number of electronic devices inside a rack. The QS solves the problem with a cleverly engineered differential circuit. Sometimes it's what we don't hear that sounds the best.High Resolution Audio
Enjoy every detail of your favorite recordings. The QS supports high-resolution audio playback up to 192kHz/24-bit and features the same ESS Saber DACs (digital to analog converters) and PML capacitors used in our top-of-the-line AVENTAGE series AV receivers.
Exclusively Yamaha
The audio performance of the QS is further enhanced by a host of exclusive Yamaha technologies, which include our Compressed Music Enhancer, Advanced Bass Extension Processing and Volume Adaptive EQ. Result - always sounds great.Versatile installation

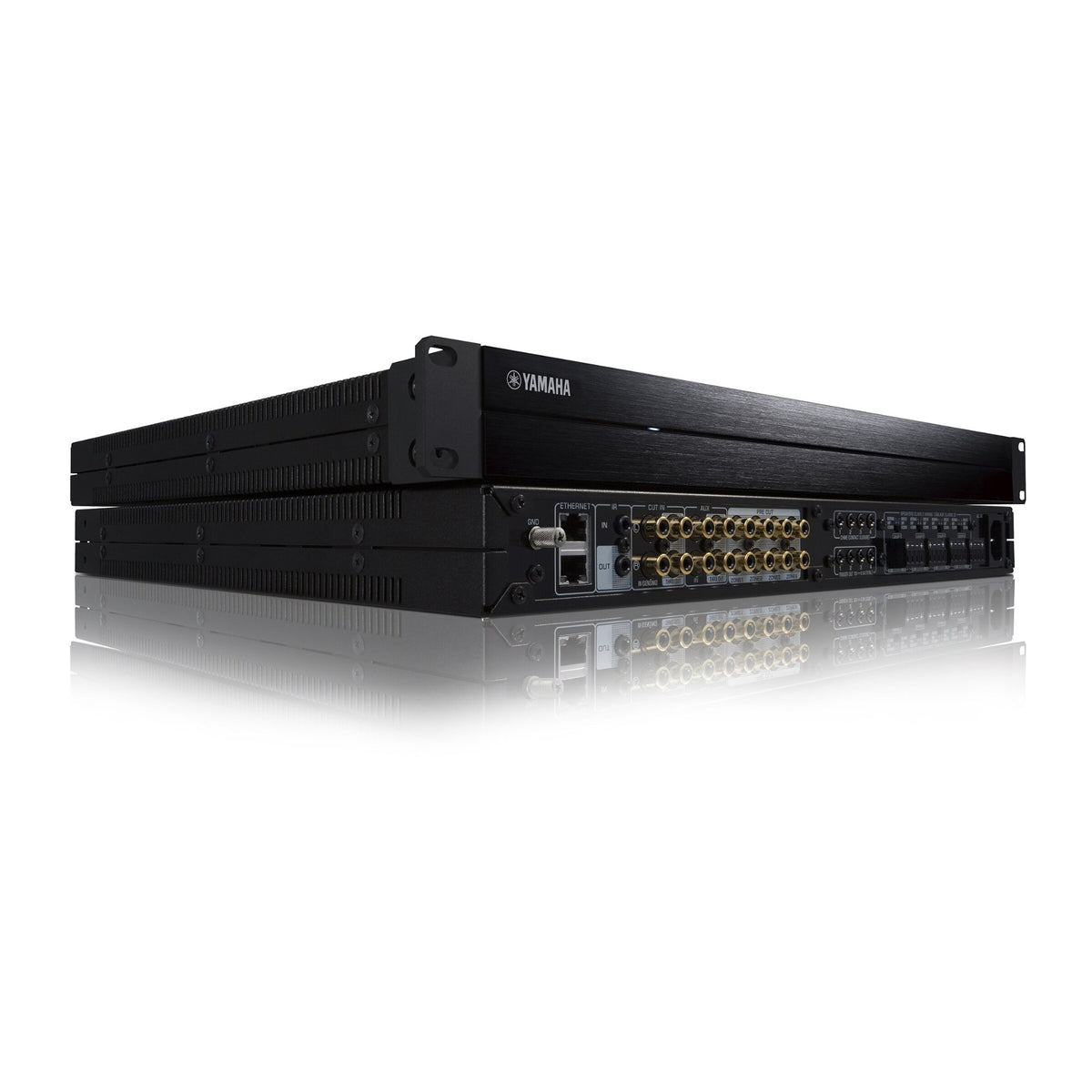

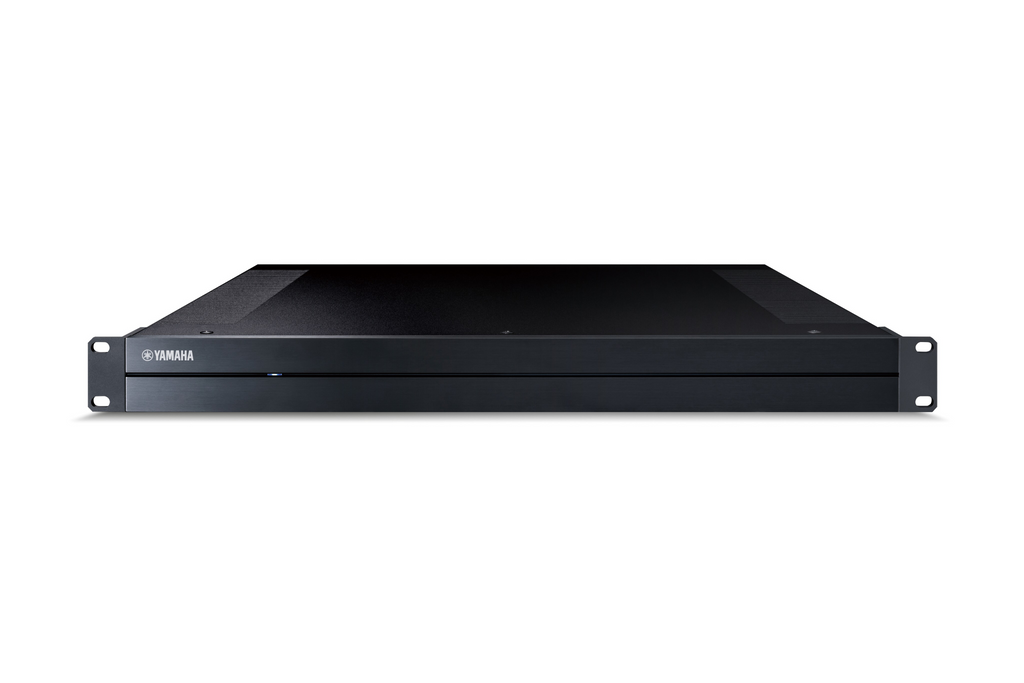

Rack-mountable with included brackets, which can be removed for rack-mount installation. The included magnetic faceplate prevents tampering and helps improve its appearance.Custom Connectivity and Control

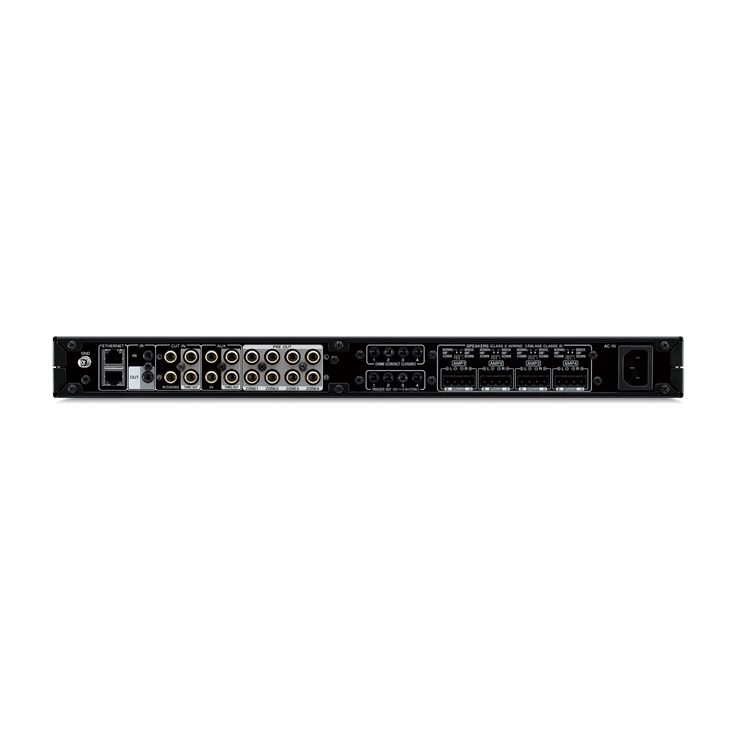

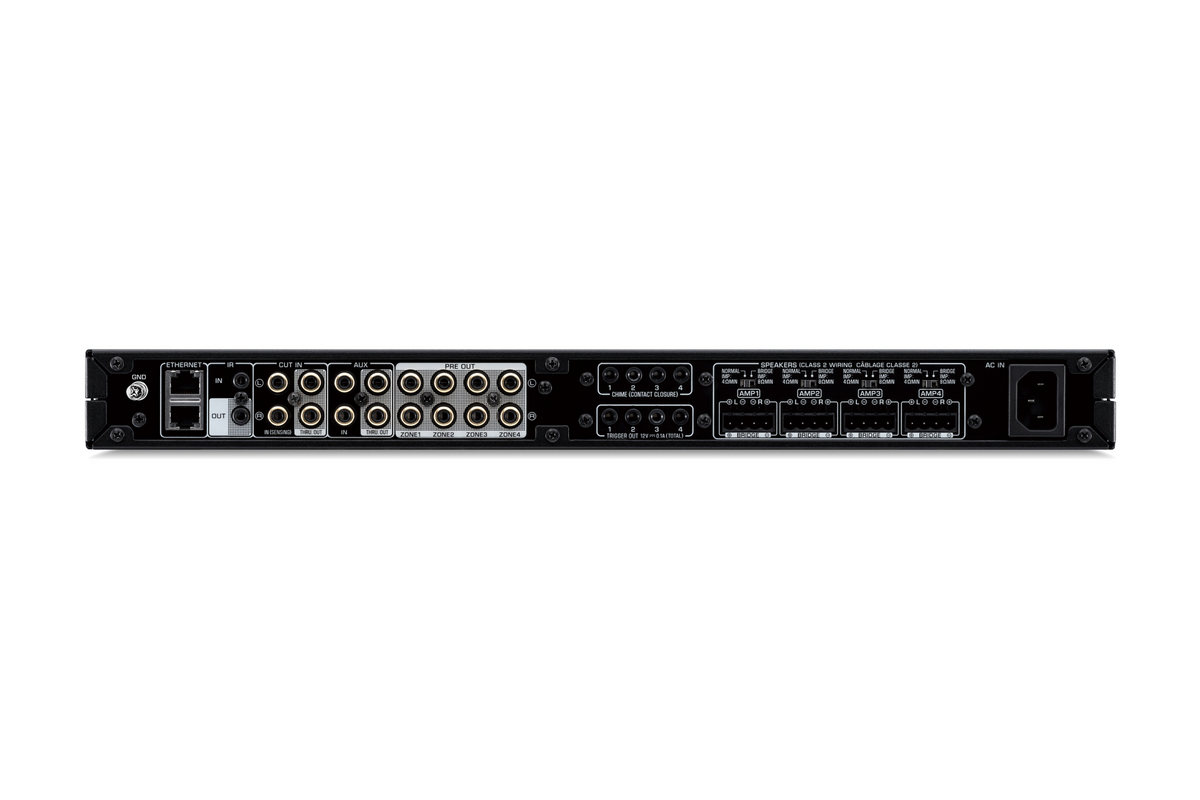

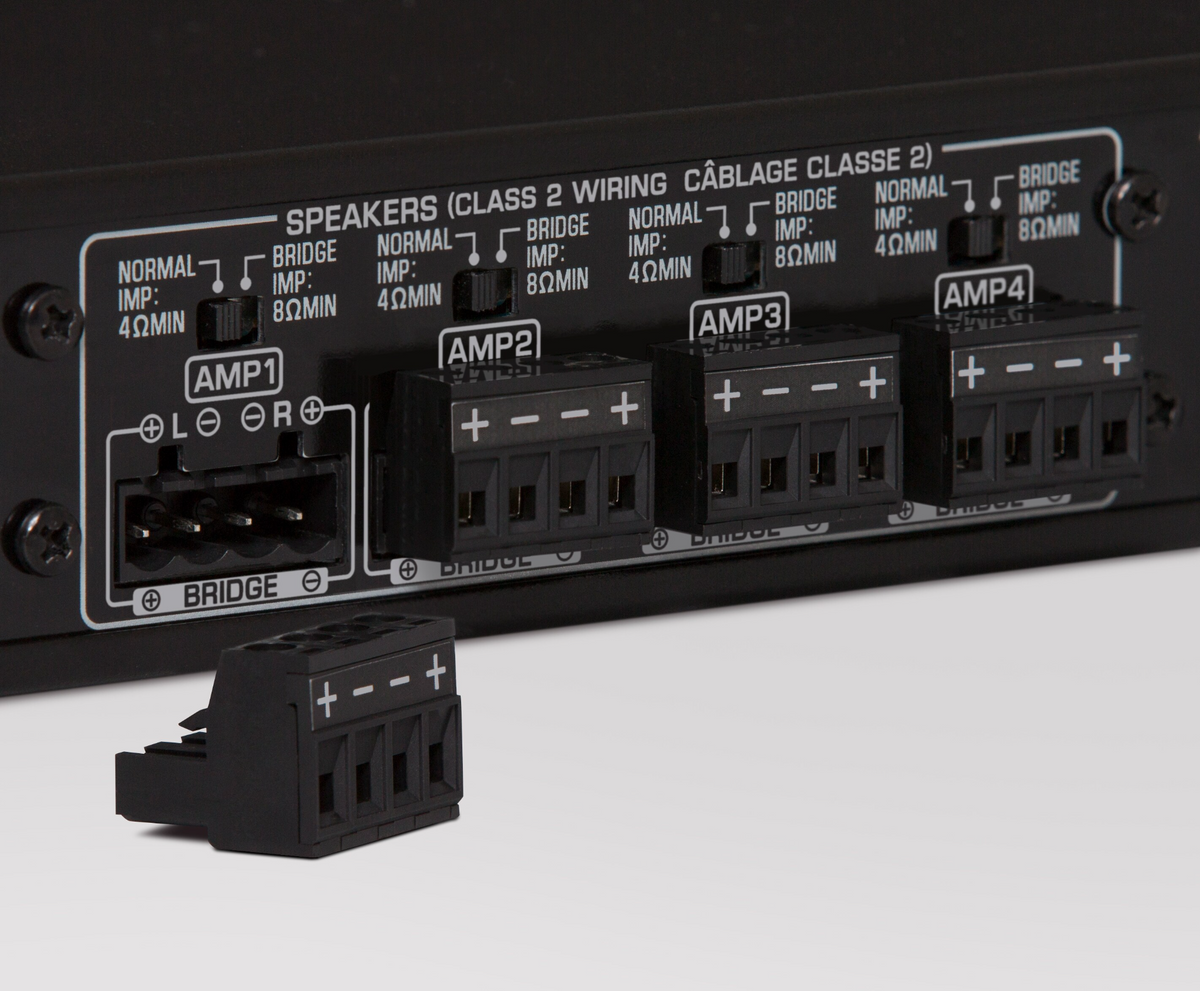

The QS is truly designed for custom integration, thanks to Euroblock speaker connectors, dual RJ-45 Ethernet ports, detachable power cord for smart connection, and IP, IR, and 12V Trigger Out jacks for ultimate control versatility .Three Ways to Handle External Sources
In addition to supporting external sources by syncing with MusicCast receivers and sound bars, the QS features an Aux input that can be selected for playback in any zone, and a Cut-In input that automatically senses an audio signal. input and temporarily replace the selected source. This gives great flexibility in integrating media-players, CD changers and even paging systems. Tru-Out outputs allow you to configure buses for connecting additional QS units.Exclusive Acoustic Alert Generator
Chime-In contact closure inputs allow you to generate a doorphone alert or, for example, a gate alert from a common switch. Exit zones and sounder selection can be configured via the web interface.Web configuration
Access basic or advanced configurations via a web interface with the ability to save commonly used profiles for easy setup for future projects.
| XDA-QS5400RK | ||
|---|---|---|
| Multi-Room Amplifier | ||
| Network Section | File Format | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV / FLAC / AIFF: up to 192 kHz / 24-bit |
| Ethernet | Yes (2 terminals) | |
| AirPlay | Yes | |
| Audio Specifications | channel | 8 channels (2 channels x 4) |
| Minimum Speaker load Capability | 4 ohms | |
| BTL Connection | Yes | |
| Speaker Output Terminal | 4 (Euroblock) | |
| Preout Terminal | 4 | |
| Audio input terminal | RCA: 2 (CUT IN, AUX), USB: 4 | |
| Audio Output Terminal | RCA (2-ch through out): 2 (CUT IN, AUX) | |
| Trigger In/Out | 0 / 4 | |
| Remote In/Out | 1 / 1 | |
| Chime | 4 | |
| Rated Output Power (1kHz, 0.9% THD, 2ch driven) | Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W | |
| Rated Output Power (1kHz, 0.9% THD, 1ch driven) | Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W | |
| Dynamic Power (20Hz-20kHz, 0.08% THD, 2ch driven, 20ms burst) | Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W | |
| Dynamic Power (1kHz, 0.9% THD, 2ch driven, 20ms burst) | Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W | |
| Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst) | Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms): 170 W | |
| Maximum Effective Output Power | [1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W | |
| Total Harmonic Distortion | [SP OUT, 20Hz-20kHz, 25W, 8 ohms] 0.04%, [PRE OUT, 20Hz-20kHz, 1V] 0.005% | |
| Frequency Response | [1kHz + 0 / -3dB] PRE OUT NET / USB IN, AUX IN: 10Hz-22kHz, SP OUT NET / USB IN, AUX IN: 10Hz-22kHz | |
| Signal to Noise Ratio | [PRE OUT NET / USB IN] 114dB, [PRE OUT AUX IN] 108dB, [SP OUT NET / USB IN] 106dB, [SP OUT AUX IN] 104dB | |
| Rated Output Level / Output Impedance | [PRE OUT L/R, 1kHz] 2.0V/470 ohms | |
| Maximum Output Level | [PRE OUT L/R, 0.9% THD] 4.0V | |
| Maximum Input Signal | [PRE OUT L/R, 0.9% THD] 2.4V | |
| gain | [SP OUT 1V Input] 25.8dB | |
| Input Sensitivity | [1W Power, 8 ohm] 150mV, [MAX (50W) Power, 8 ohm] 1.0V | |
| Web Setup | Yes | |
| DirectMode | Yes | |
| Monaural Downmix | Yes (stereo playback or monaural downmix selectable) | |
| Compressed Music Enhancer | Yes | |
| Volume Adaptive EQ | Yes | |
| Volume control | Support Terminals: PRE OUT / SP OUT, Range: Mute, -80dB ~ 0dB, Step: 0.5dB | |
| EQ Characteristics | [Bass] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Center Frequency: 350 Hz, [Mid] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Center Frequency: 1.1 kHz, [Treble ] Variable Width: +6.0dB ~ -6.0dB / 0.5dB step, Center Frequency: 3.5kHz | |
| Bass Extension | Yes | |
| General | power consumption | 130W, [All Zone On] No Signal Condition: 40W, [All Zone Off] Chime On: 18.2W, Cut In Power On Enable: 18.2W |
| Standby Power Consumption | Network Standby Off: 0.2W, Network Standby On(1 Zone): 3.2W, Network Standby On(All Zone): 6.0W | |
| Power Management (Auto Power Standby) | 5 / 20 mins, 2 / 4 / 8 / 12 hours selectable | |
| Dimension (W × H × D) mm | [Table Top Mount with Adhesive Feet] 437 x 46 x 443mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8” | |
| Weight | 6.3kg; 13.9 lbs. | |
