OVERVIEW
The D8 and D10 subwoofers are the perfect way to enhance the bass performance of your stereo or home theater system.

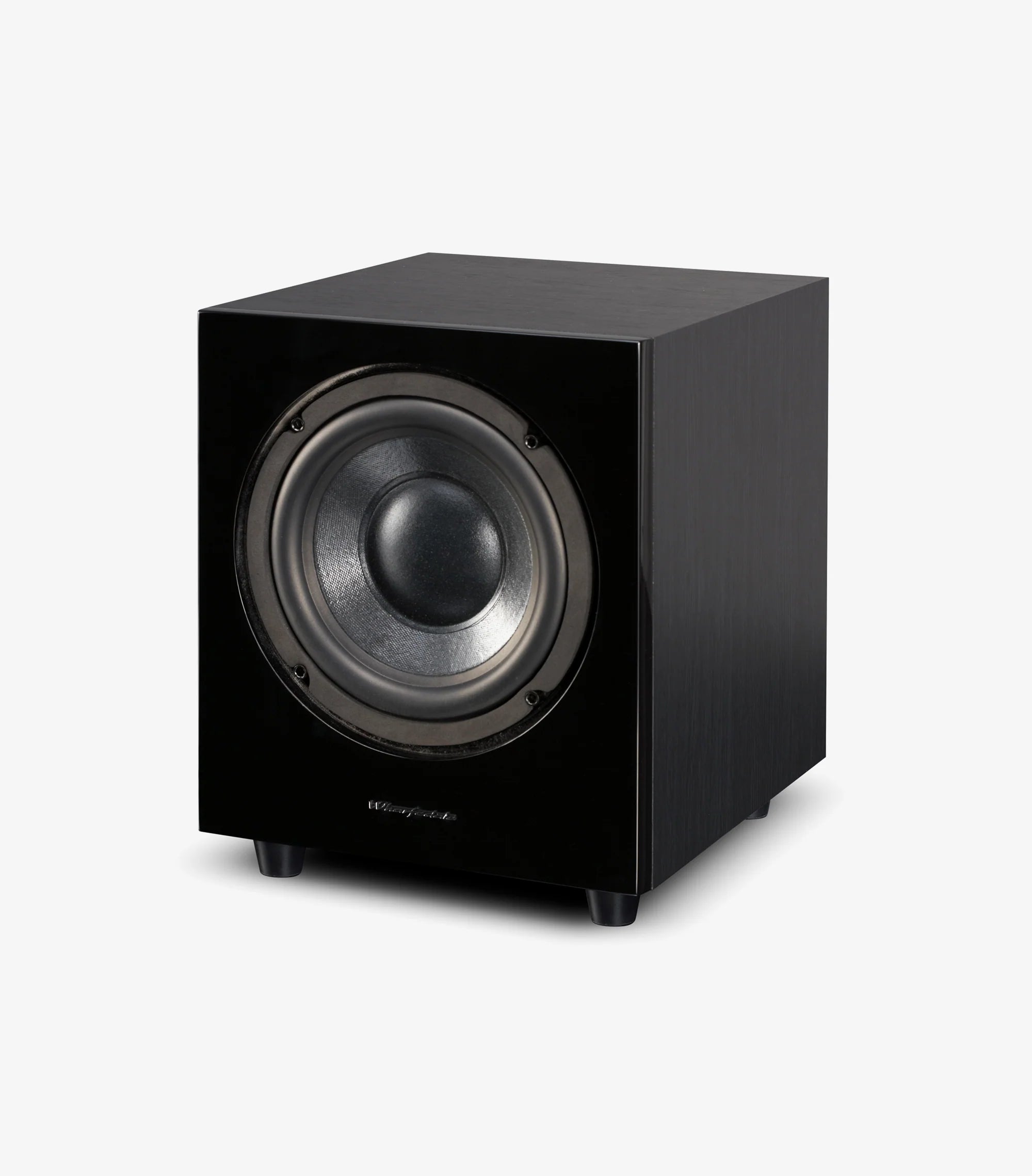

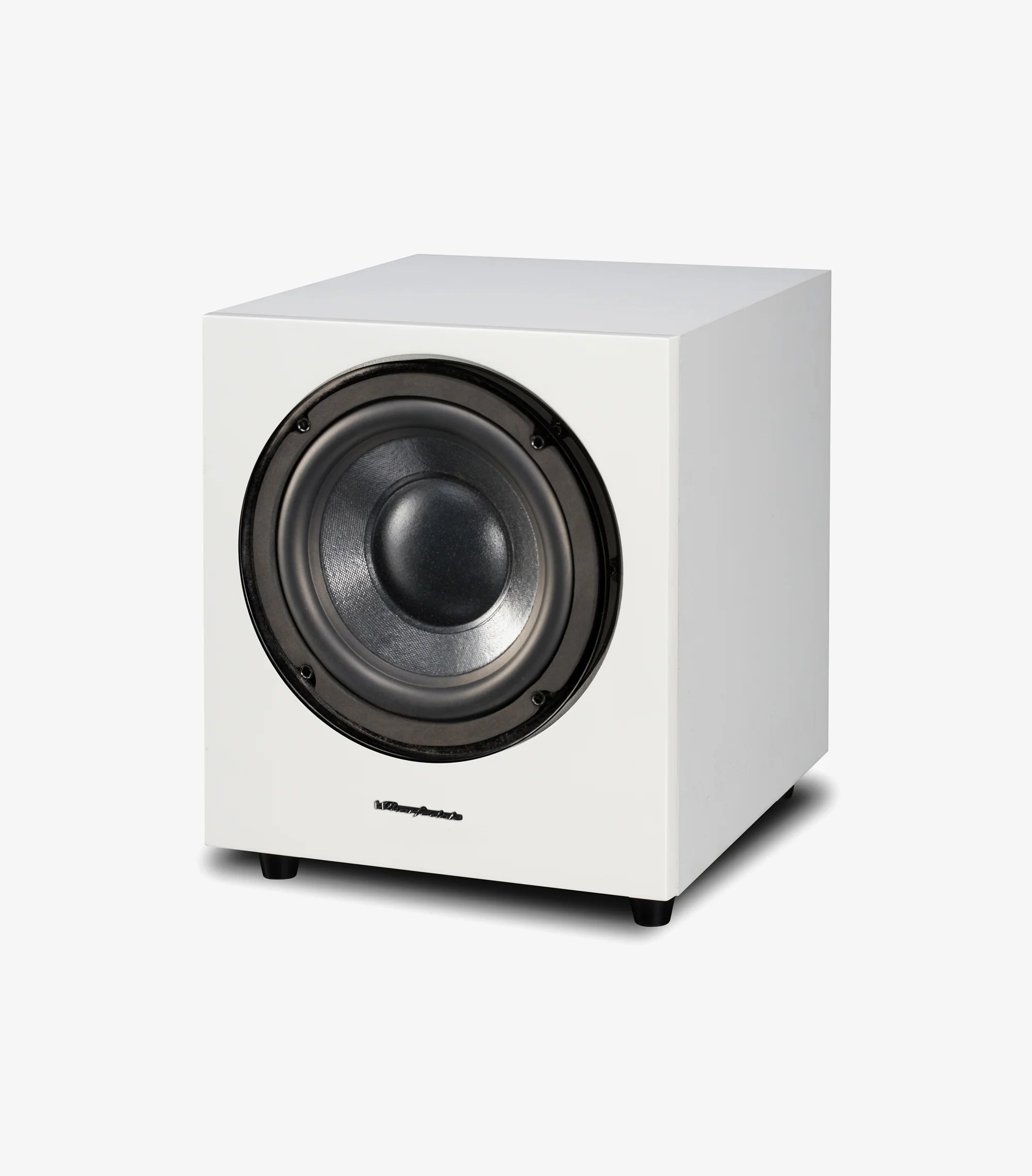

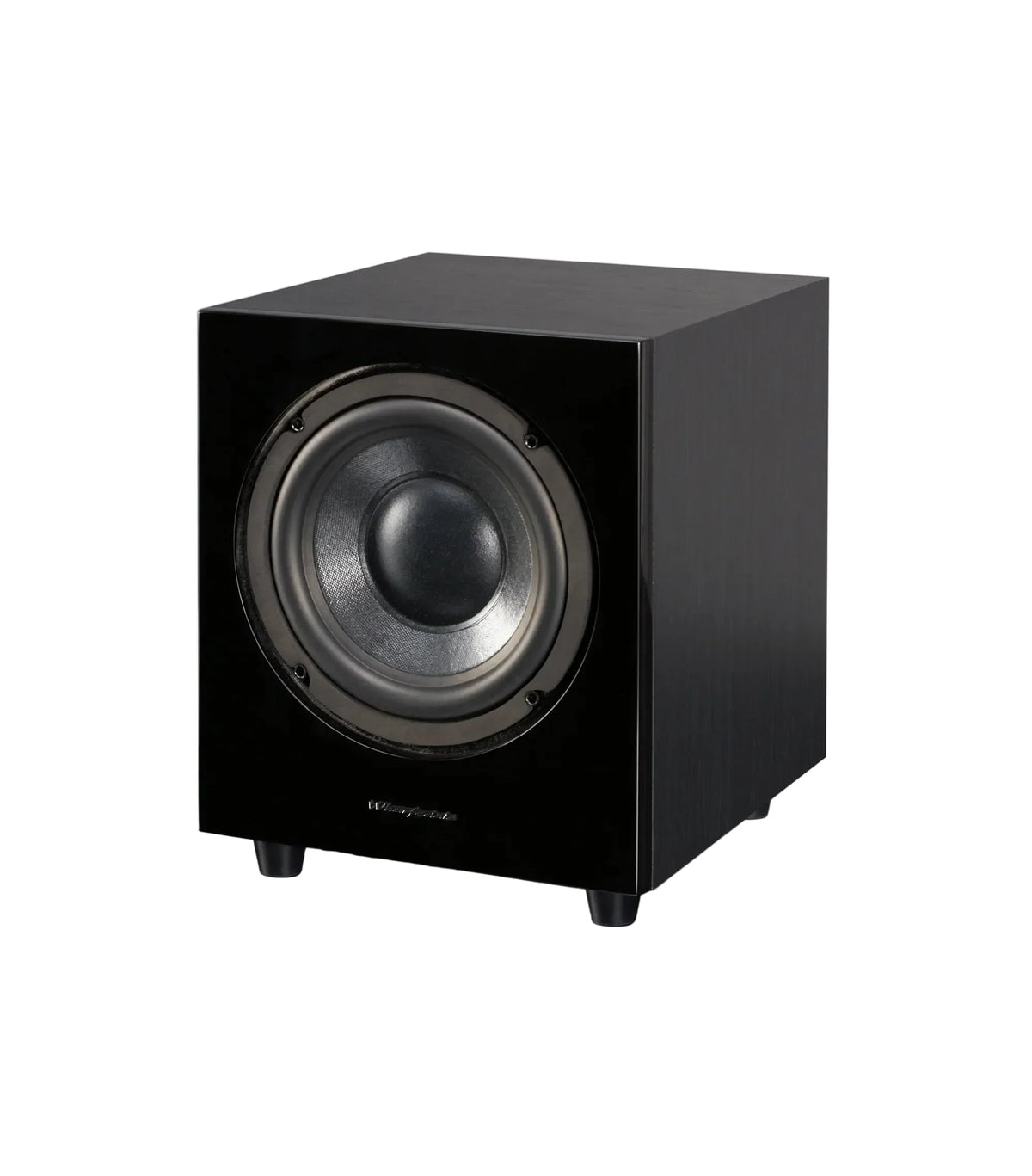

The D8's cabinet construction has been cosmetically improved. Not only is this a significant improvement, but the new design is also engineered to perfectly match the award-winning Diamond 200 Series.
In addition to the new, improved aesthetics, the two new subwoofers are built to elevate the performance of any AV setup.
TECHNICAL SPECIFICATIONS:

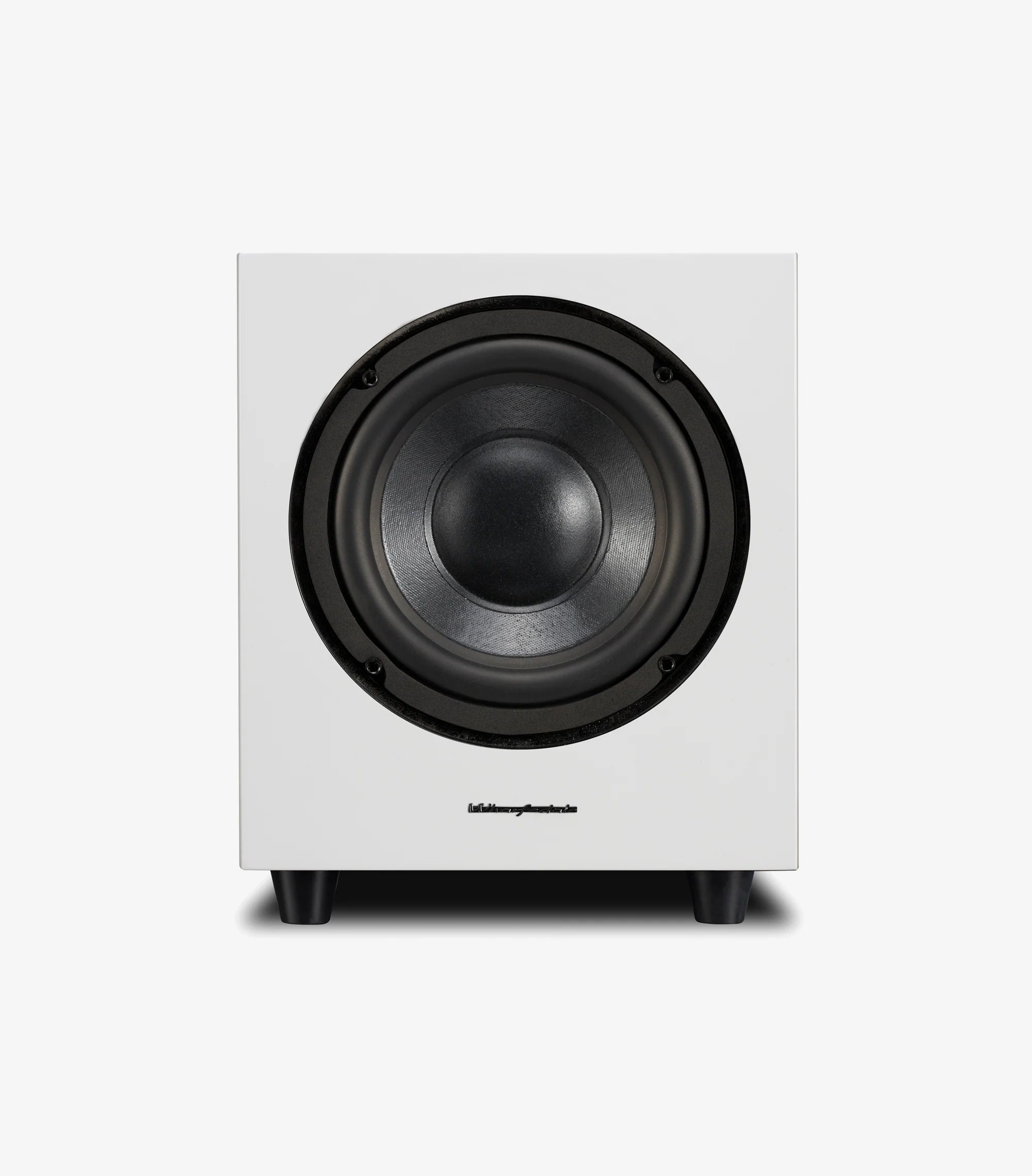

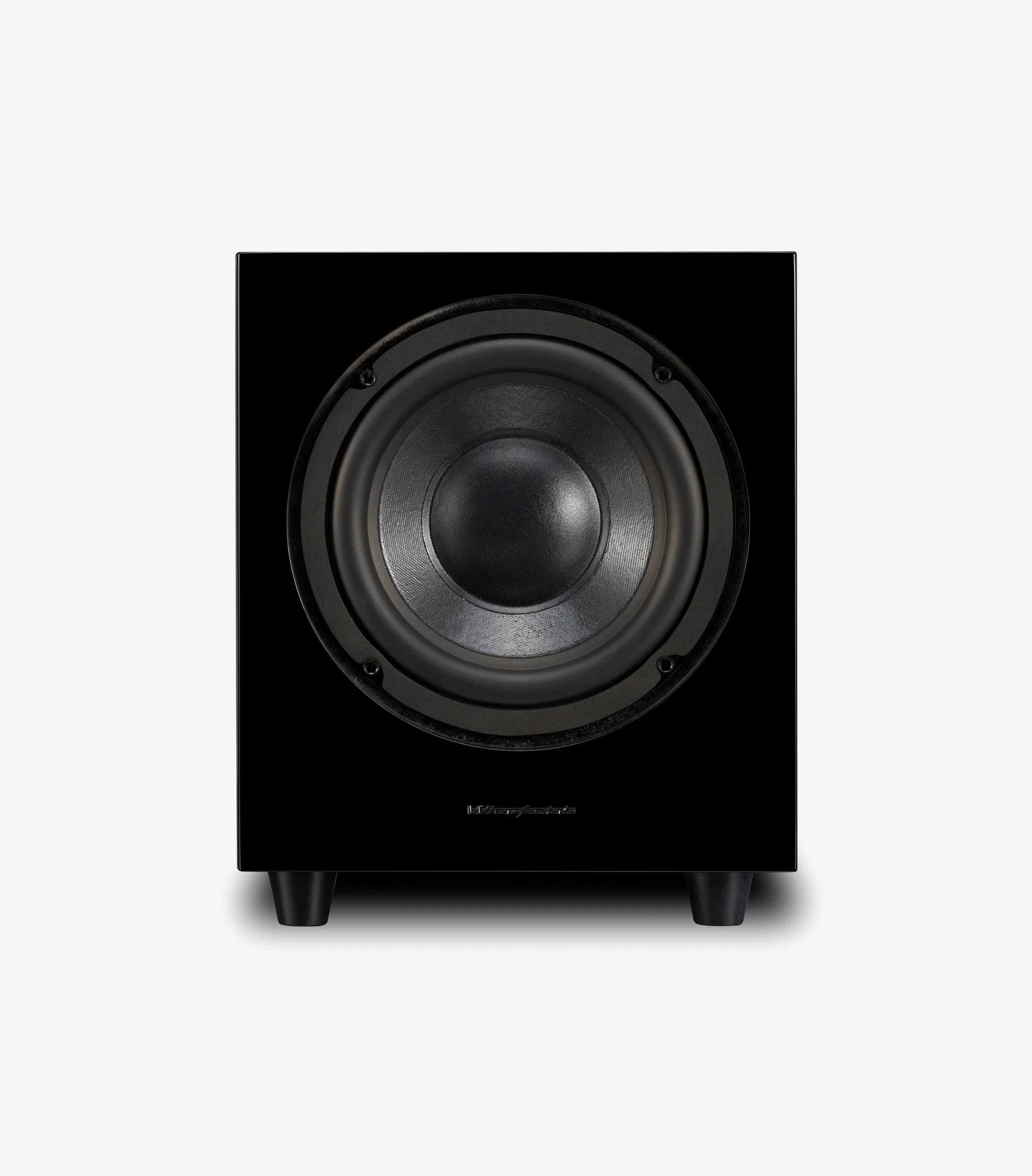

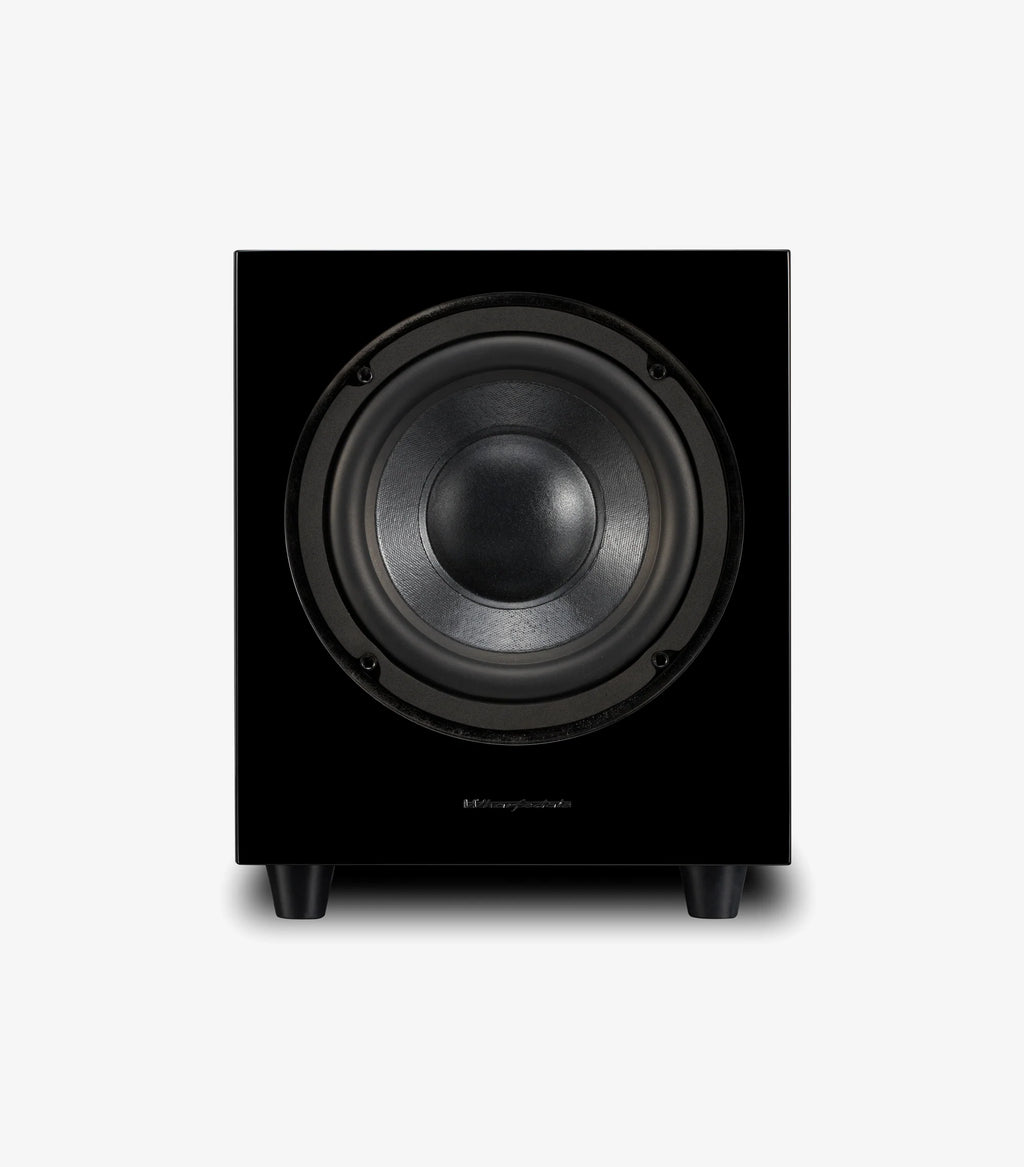

| Drivers
|
1 x 8'' (200mm) Long Range Cone |
| Housing type |
Acoustic box with ported box |
| Frequency response (+/-3dB)
|
30Hz - 200Hz |
| Bass extension
|
30Hz |
| Amplifier output power
|
70W |
| Peak output power
|
150W |
| Line input sensitivity
|
200mV for maximum output |
| Range of crossovers
|
40Hz - 150Hz |

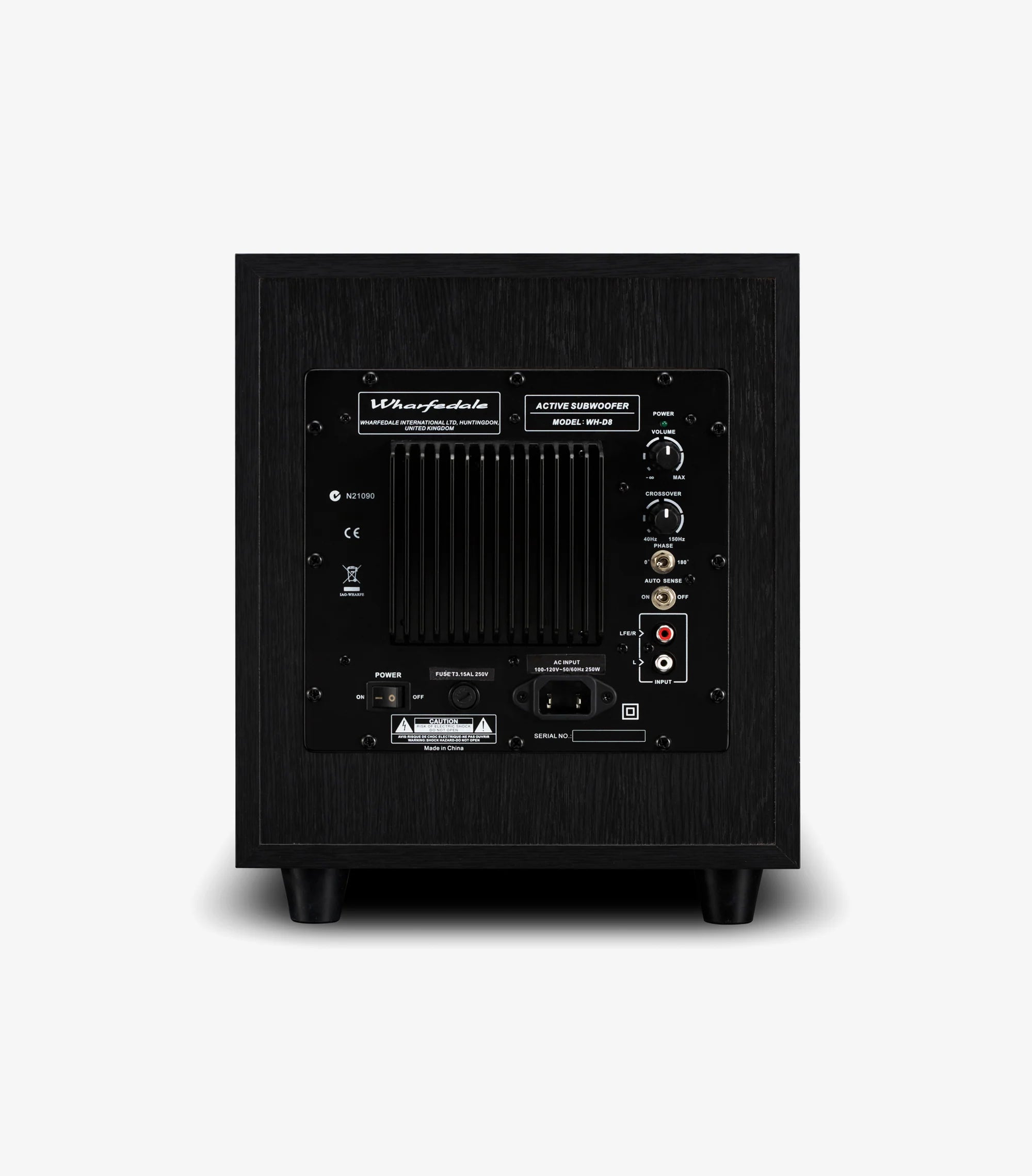

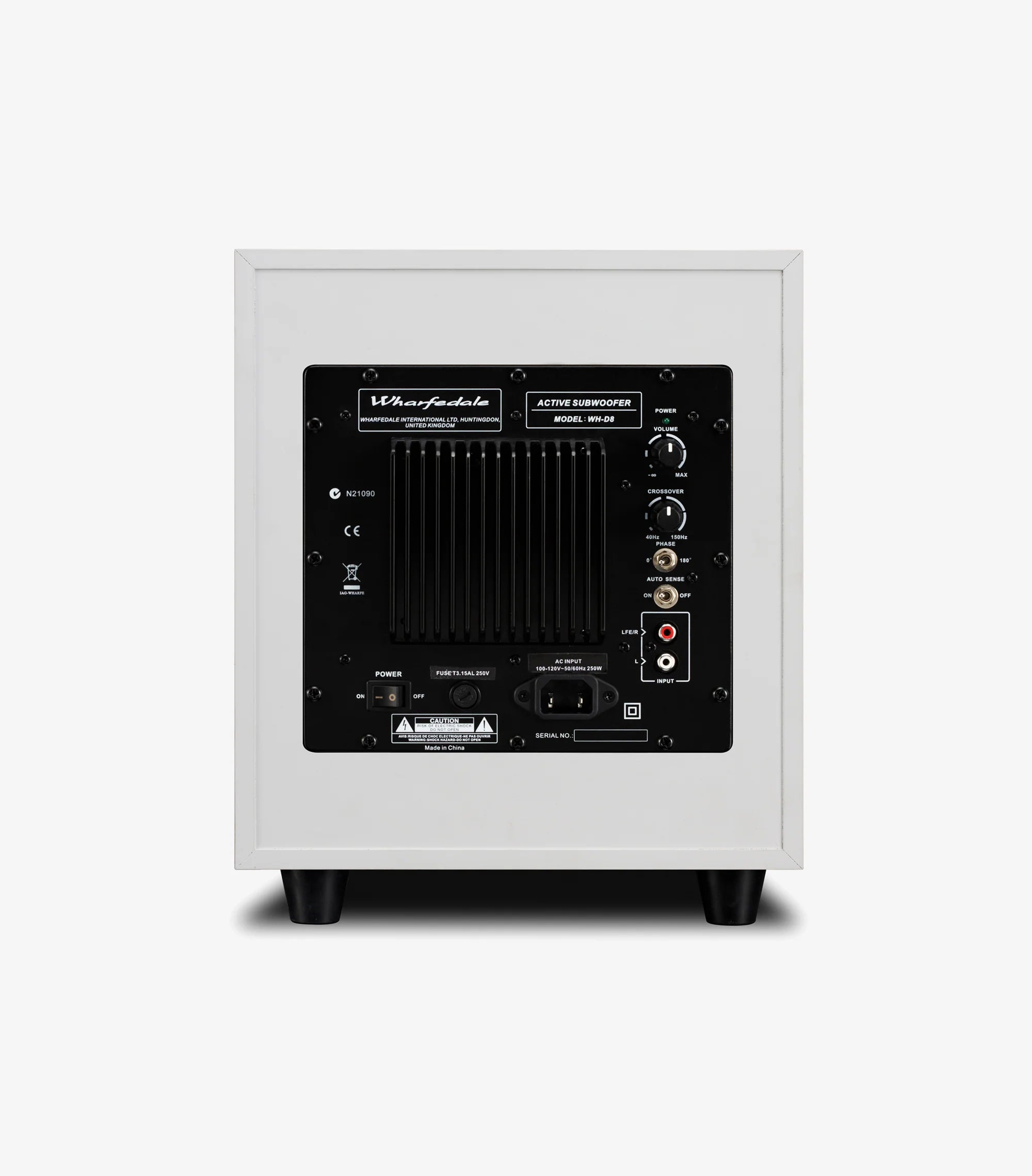

| Entrances
|
Stereo line input (2 x RCA Phono); Mono line input (LFE) (RCA Phono) |
| Input impedance
|
Line Input: 20kOhms; LFE: 5 ohms |
| Dimensions (H x W x D)
|
330 x 268 x 327 (mm) |
| Net weight
|
8.6kg |
